NOU

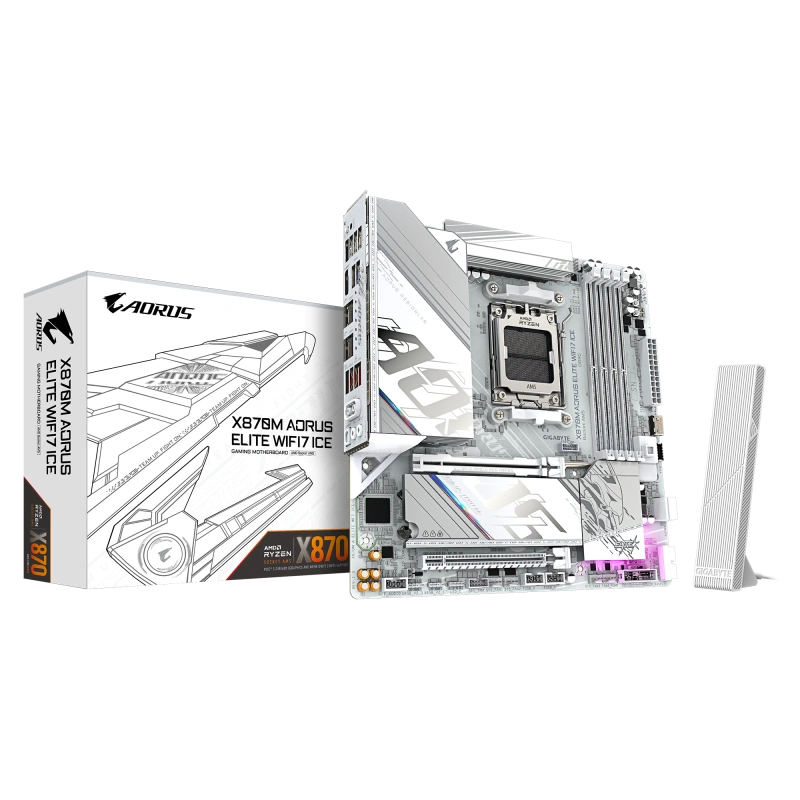

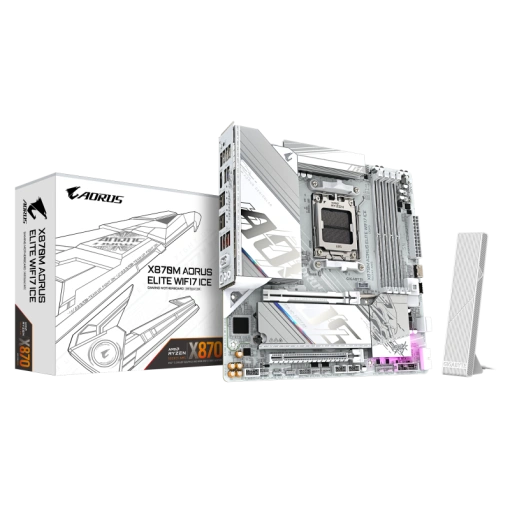

GIGABYTE X870M AORUS ELITE WIFI7 ICE
2.108,37 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
X870M A ELITE WF7 ICE
Categorii
Brand
Bluetooth
Yes
Wi-FI
Yes
Country of origin
China
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
USB4 Gen 3x2 ports quantity
2
Processor manufacturer
AMD
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Product colour
White
Batteries included
Yes
Battery type
CR2032
Component for
PC
Warranty period
3 year(s)
Number of battery cells
1
Headphone outputs
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
DisplayPort version
1.4
HDCP version
2.3
Lithium weight per battery
0.07 g
Battery capacity
220 mAh
Battery weight
3 g
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Audio output channels
7.1 channels
Cooling type
Passive
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Windows operating systems supported
Windows 11 x64
Parallel processing technology support
Not supported
DirectX version
12.0
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Products per shipping (inner) case
1 pc(s)
ECC сompatibility
Non-ECC
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
Screws included
Yes
Antenna included
Yes
USB 2.0 ports quantity
4
Digital audio optical out
1
Line-in
Yes
DVI-D ports quantity
0
S/PDIF out port
Yes
WiFi-AP antenna jack
2
RAID support
Yes
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
Supported storage drive types
HDD & SSD
Height
35 mm
Depth
244 mm
PCI Express x16 (Gen 4.x) slots
1
Motherboard chipset family
AMD
Maximum resolution
4096 x 2160 pixels
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
USB 3.2 Gen 2x2 connectors
1
Supported memory clock speed (max)
8200 MHz
WLAN controller model
Realtek RTL8922AE
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of HDDs supported
2
Audio Chip
Realtek ALC1220-VB
LAN controller
Realtek RTL8125
Package weight
2.06 kg
BIOS memory size
256 Mbit
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset
AMD X870
Number of EPS power connectors (8-pin)
1
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Weight
1.86 kg
Package height
68 mm
Package width
270 mm
Package depth
268 mm
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Width
244 mm
