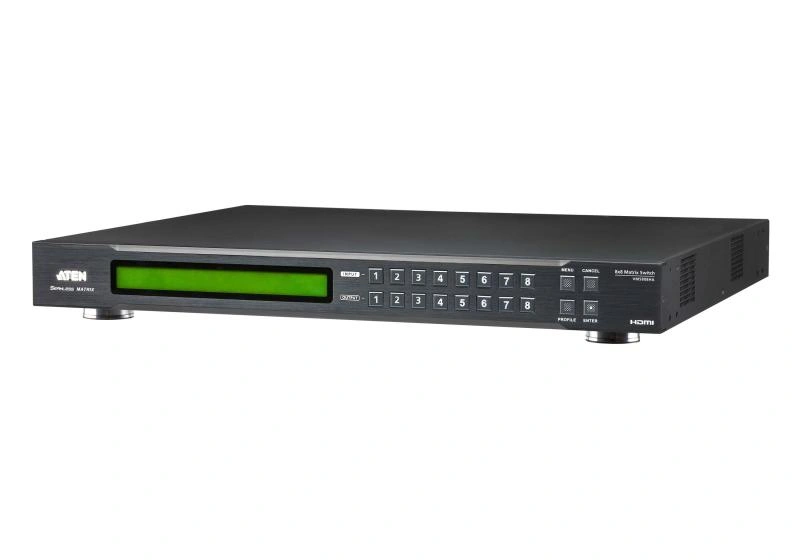

8x8 HDMI Matrix Switch with Scaler Aten
35.592,24 RON
Costurile de livrare nu sunt incluse
Detalii
SKU
VM5808HA-AT-G
Categorii
Brand
Country of origin
Taiwan
Ethernet LAN (RJ-45) ports
1
Housing material
Metal
Operating temperature (T-T)
0 - 40 C
Storage temperature (T-T)
-20 - 60 C
Manual
Yes
Built-in display
No
Maximum resolution
1920 x 1080 pixels
On/off switch
Yes
Weight
5.54 kg
Cables included
AC
AC input voltage
100 - 240 V
HDCP
Yes
Height
44 mm
Operating relative humidity (H-H)
0 - 80%
HDCP version
1.4
Firmware upgradeable
Yes
Rack mounting
Yes
Rack mount kit
Yes
Rack capacity
1U
Housing colour
Black
Extended display identification data (EDID)
Yes
3D
Yes
Product type
AV matrix switcher
Data transfer rate
6.75 Gbit/s
Maximum pixel clock
225 MHz
Master (outer) case width
506 mm
Master (outer) case volume
37944.57 cm
Master (outer) case height
130 mm
Master (outer) case length
575 mm
Package height
130 mm
Package depth
575 mm
Package volume
37944.57 cm
Package width
506 mm
Audio (L/R) out
1
RS-232 ports
1
AC input frequency
50 - 60 Hz
Input current
1 A
Depth
432.4 mm
Width
378.2 mm
KVM-Type
Analog
HDMI input ports quantity
8
Master (outer) case gross weight
7.04 kg
Master (outer) case net weight
5.87 kg
Heat dissipation
265 BTU/h
Heat dissipation (max)
272 BTU/h
Package weight
7.04 kg
HDMI output ports quantity
9
Power consumption (max)
58.1 W
Power consumption (typical)
56.6 W
